Ghosted Home Series

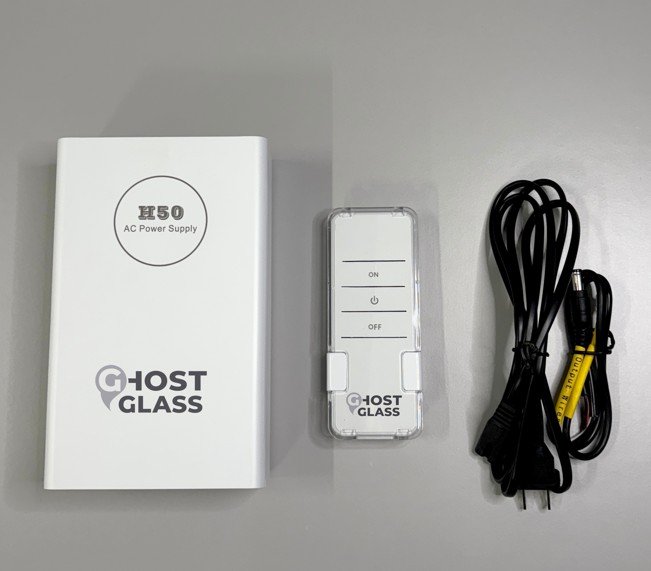

Professional-grade low-voltage power supply for Ghost Glass. Comes with a programmed remote control to switch between the on/off state. Supports up to 200sq ft of Ghost Glass film installation (at .5w per sq ft).
30 Watt: Rated For film Sq FT 1-60 sq ft.
50 Watt: Rated For film Sq FT 30-100 sq ft
100 Watt: Powers up to 70-200 sq ft of film
If you have questions please contact a Ghost Glass Representative.
Universal Input:
110/220VAC, 50/60Hz, 450mA;
Output: 48-65 VAC Square wave, 50/60Hz, 600mA.
Dimensions:
30w : 3.5"x1.2"x6" (W~D~H)
50w : 4.5"x1.8"X7" (W~D~H)
100w : 4.3" x 1.8" x 7" (W~D~H)
Weight:
30W: 2LBS
50W: 3 LBS
100W: 3.5 LBS
Configuration:
ON/OFF
48 or 60 VAC
Operating Temperature:
-40°F - 176°F.
Features integrated surge protection, LED status indicators, and temperature monitoring. Compatible with all Ghost Glass films. All controllers are CE rated.
